Custom Aluminum Enclosures & Extrusion Housings
Custom aluminum enclosures in sheet aluminum and extrusion profile construction: 5052/6061/6063, anodized or powder coated, with heat-sink and EMI options. Made to drawing by a China OEM factory.
Typical Configuration & Parameters
When weight, heat dissipation or a premium feel matter, aluminum is the right enclosure material. We build both sheet aluminum housings (5052/6061) and extrusion-profile enclosures (6063-T5) with precision end machining.
Finishing is handled in-house: anodizing in clear, black or colors, sandblasting, brushing and powder coating - so the surface quality matches the engineering underneath.
Details, Finishes & Applications

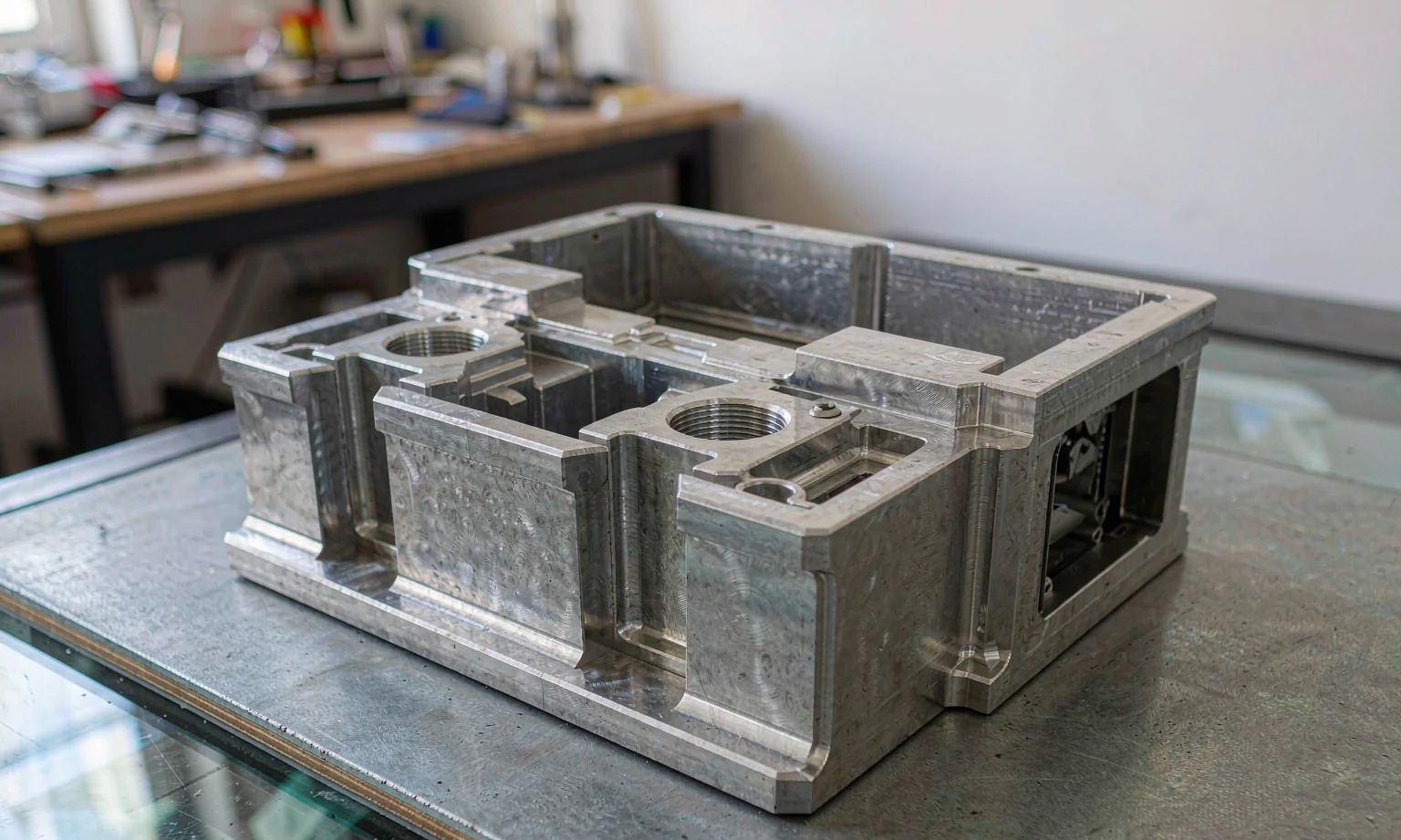

Representative photos of our sheet metal work - click any image to enlarge.
Specifications at a Glance
| Parameter | Typical Specification |
|---|---|
| Materials | 5052, 6061 sheet; 6063-T5 extrusion profiles |
| Construction | Sheet fold / weld, extrusion + end caps, or hybrid |
| Thickness | 1.0 - 3.0 mm sheet; profile per section drawing |
| Finishes | Anodizing, sandblasting, brushing, powder coating |
| Features | Heat-sink fins, mounting rails, slot channels, EMI |
| Tolerance | Cutting +/-0.1 mm; profile machining +/-0.05 mm |
| Typical size | Custom - from handheld to 800 mm housings |
| Lead time | Prototype 7-12 days; serial 18-30 days |
Parameters above are representative. Your drawing defines the final specification.
Popular Configurations We Manufacture
All sizes and options below are fully customizable to your drawing. Use a configuration as a starting point for your quotation.
Sheet Aluminum Housings
Portable instruments, power supplies, lighting and RF gear.
| Material | AL 5052 / 6061, 1.0-2.0 mm |
| Style | Folded box with brushed or anodized finish |
| Options | Cutouts, vents, embossing, mounting features |

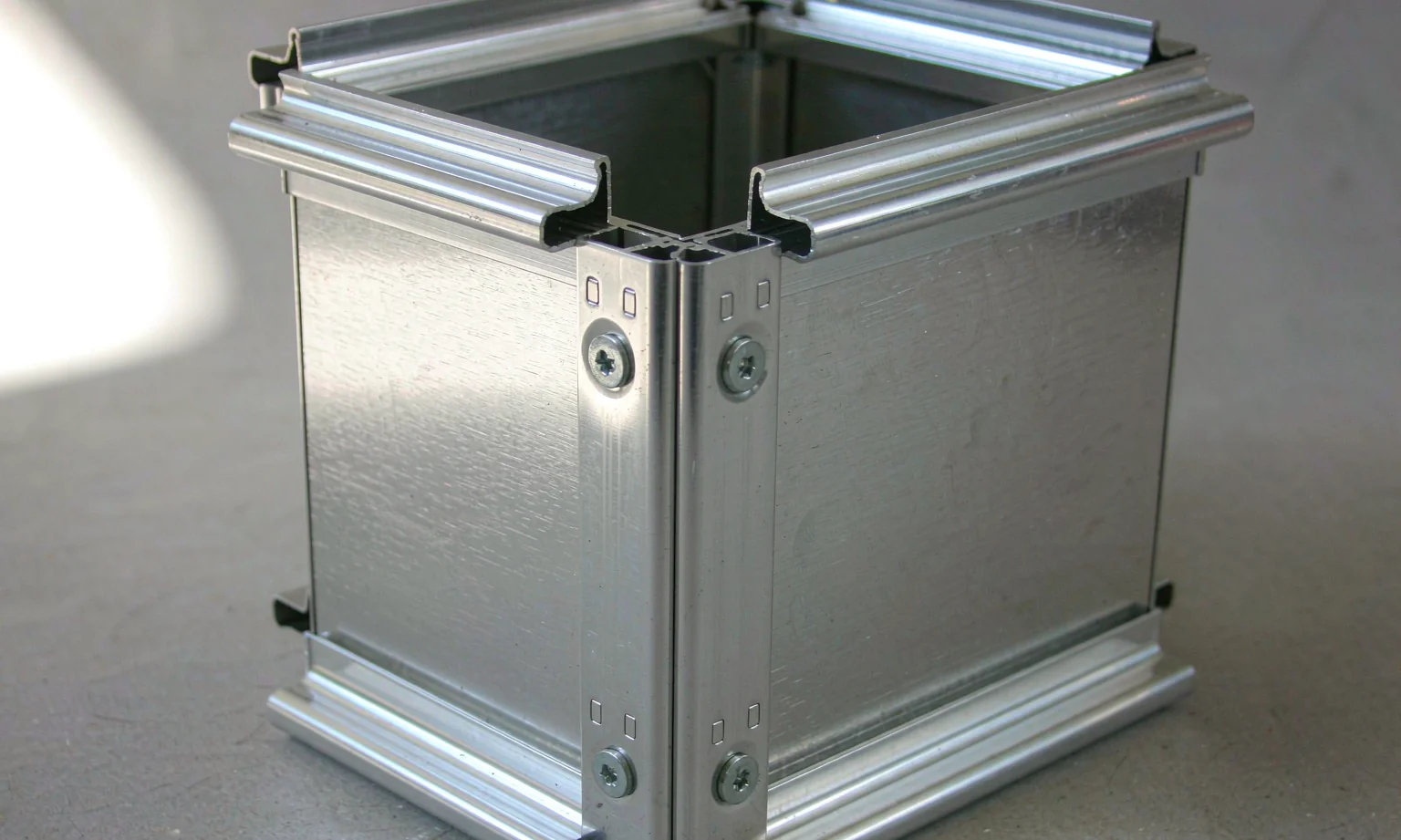

Extrusion-Profile Enclosures
Desktop electronics, amplifiers, controllers and LED drivers.
| Construction | 6063-T5 profile + CNC-machined end caps |
| Length | Custom, cut to +/-0.1 mm |
| Slots | PCB mounting slots, panel grooves, rail options |
| Finish | Clear/black anodized or powder coated |

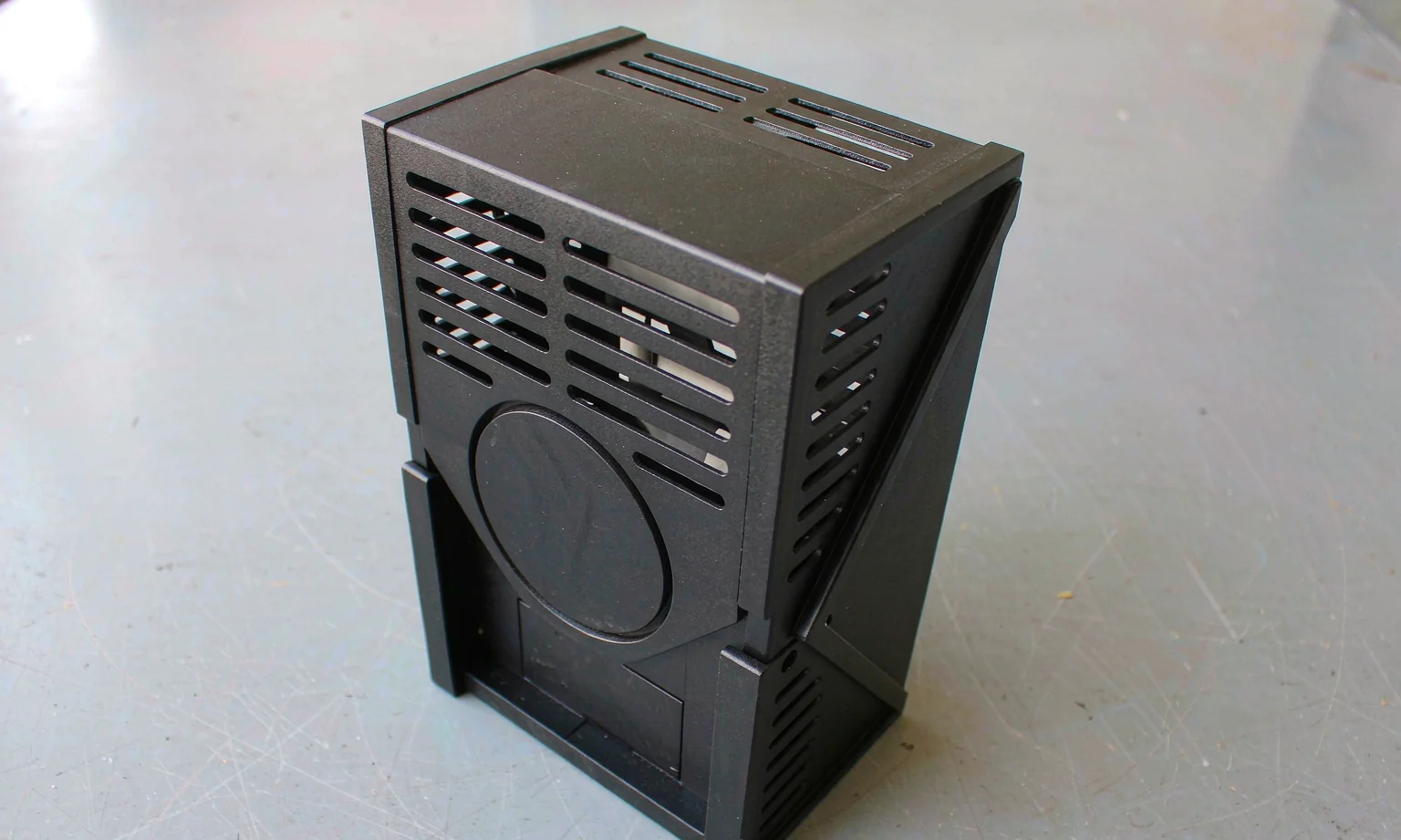

Heat-Dissipating & Chassis
High-power modules, amplifiers, chargers and embedded systems.
| Fins | Extruded or bonded heat sinks |
| Material | 6061/6063 with thermal interface features |
| Integration | Fan brackets, airflow channels, mounting |
| Finish | Black anodizing for emissivity |
Materials, Finishes & Customization
For extrusion-profile enclosures, tell us the section or send a sample - we can also source and machine custom profile sections.
Standard Materials
| AL 5052 | Best formability, corrosion resistant |
| AL 6061 | Higher strength, machining friendly |
| AL 6063-T5 | Extrusion profiles, excellent anodizing |
| AL 6063-T6 | Higher hardness for structural profiles |
Surface Finishes
| Anodizing | Clear, black, colored; Type II and hard coat |
| Sandblasting | Matte uniform surface before anodizing |
| Brushing | Linear satin finish for panels |
| Powder coating | Full RAL color range for sheet parts |
Customization
| Profile machining | Cutting, drilling, tapping, end machining |
| Heat management | Fins, heat sinks, vent patterns |
| Shielding | Conductive finishes and gaskets |
| Assembly | Press-in PEM hardware, bracket mounting |
| Branding | Silk-screen or laser marking |
The Production Route for This Product
DFM & Engineering Review
Bend radii, tolerances, weld access and assembly sequence checked against your drawing before quoting.
Laser Cutting
Fiber laser profiles the flat patterns with burr-free edges and repeatable accuracy.
CNC Bending & Forming
Synchronized press brakes form the body, flanges and structural features.
Welding (optional)
TIG, MIG or spot welding for frames and sealed assemblies, then grinding and finishing.
Surface Finishing
Powder coating, anodizing, plating or brushing applied to your specification.
Assembly & Inspection
Hardware, hinges, gaskets and labels installed; dimensions, appearance and fit checked.
Pack & Ship
Protective film, corner protection, palletizing and container planning for your market.
Common Questions About This Product
Sheet aluminum enclosures are folded from flat sheet, ideal for simple custom boxes with cutouts. Extrusion-profile enclosures use a fixed cross-section profile with machined end caps, giving faster tooling-free production for long runs and a distinctive industrial look.
Yes - colored anodizing is available, though lead time and minimums differ from clear/black. Sandblasting before anodizing gives the most uniform finish.
Aluminum gives natural conductivity; with conductive surface treatment and gaskets we can build to your shielding requirements. Discuss the frequency range and attenuation target with our engineers.
We can machine your own profile sections and also help source standard or custom 6063 profiles from our partner mills when the volume justifies extrusion tooling.
