19-Inch Rack Chassis & Server Enclosure Manufacturer
Custom 19-inch rack chassis and cases for servers, network, audio and test equipment: 1U-10U chassis, perforated panels, rack ears, rails and shelves. Sheet metal OEM factory, made to your drawing.
Typical Configuration & Parameters
From a 1U front panel to a full 42U rack frame, we fabricate the metal chassis that carries your hardware. Rack ears, perforation patterns, mounting rails, cable guides and grounding details are all manufactured in-house.
Standard 19-inch width (482.6 mm) is only the start - we also build to your custom mounting width, depth and height, with EMI shielding and airflow features designed into the sheet metal.
Details, Finishes & Applications

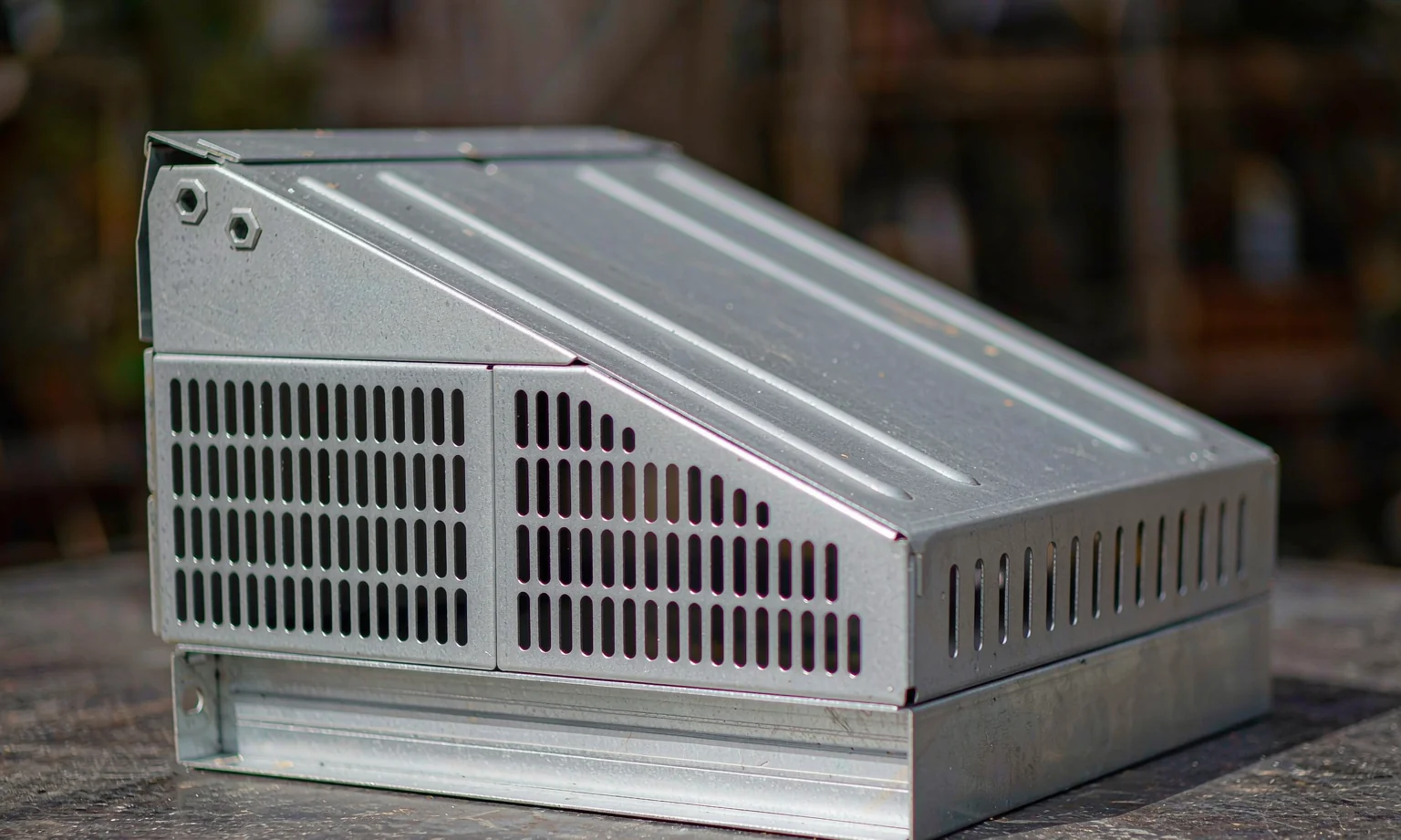

Representative photos of our sheet metal work - click any image to enlarge.
Specifications at a Glance
| Parameter | Typical Specification |
|---|---|
| Standard width | 19 inch (482.6 mm); custom widths available |
| Heights | 1U to 10U and full rack frames |
| Depths | Custom, typical 250 - 900 mm |
| Materials | SPCC 1.0-2.0 mm, SECC, aluminum 5052 |

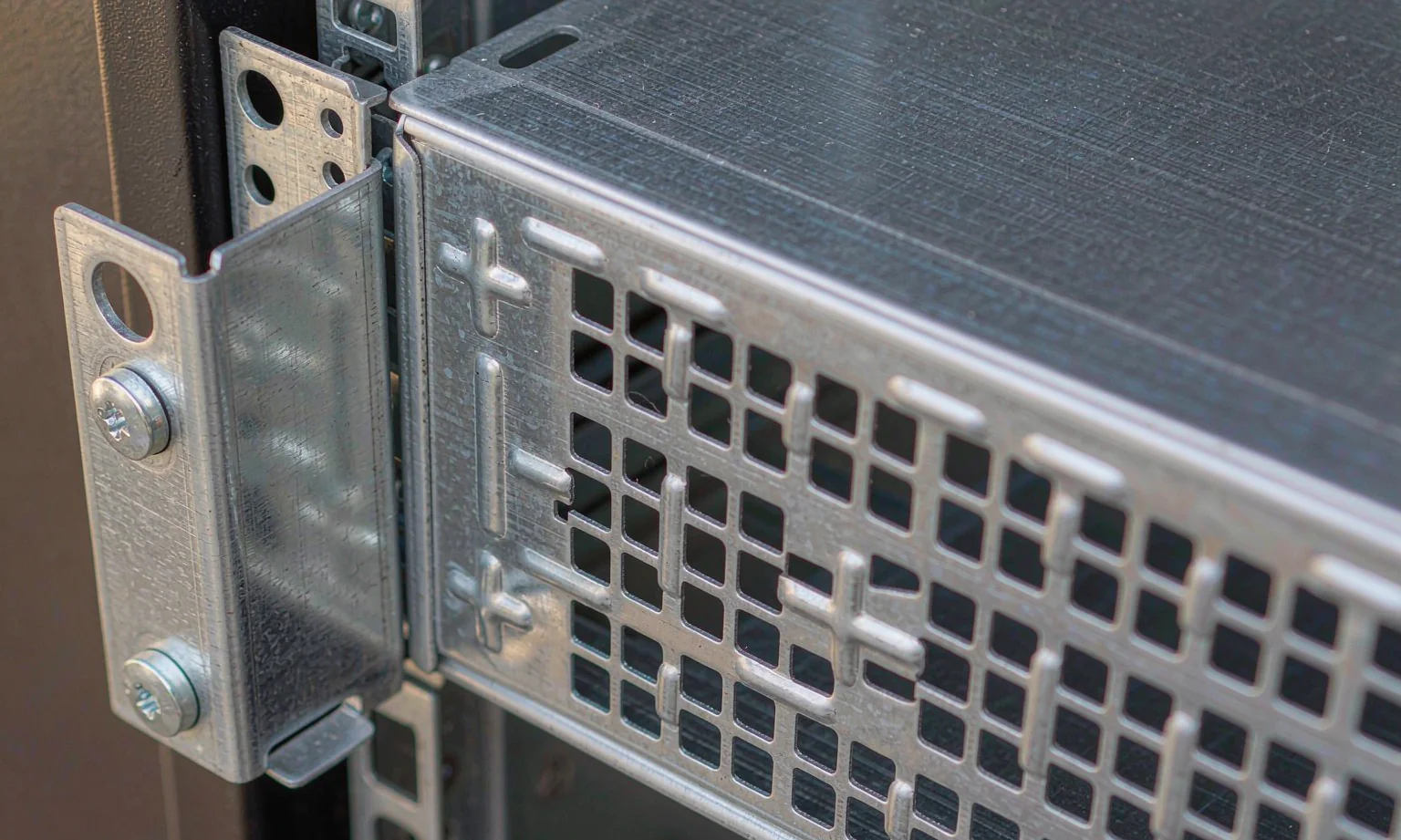

| Features | Rack ears, perforated panels, shelves, slide rails, cable bars |
| Perforation | Round, square or louver; open-area ratio per airflow spec |
| Finish | Powder coating, black textured standard |
| Lead time | Prototype 5-10 days; serial 15-25 days |
Parameters above are representative. Your drawing defines the final specification.
Popular Configurations We Manufacture
All sizes and options below are fully customizable to your drawing. Use a configuration as a starting point for your quotation.

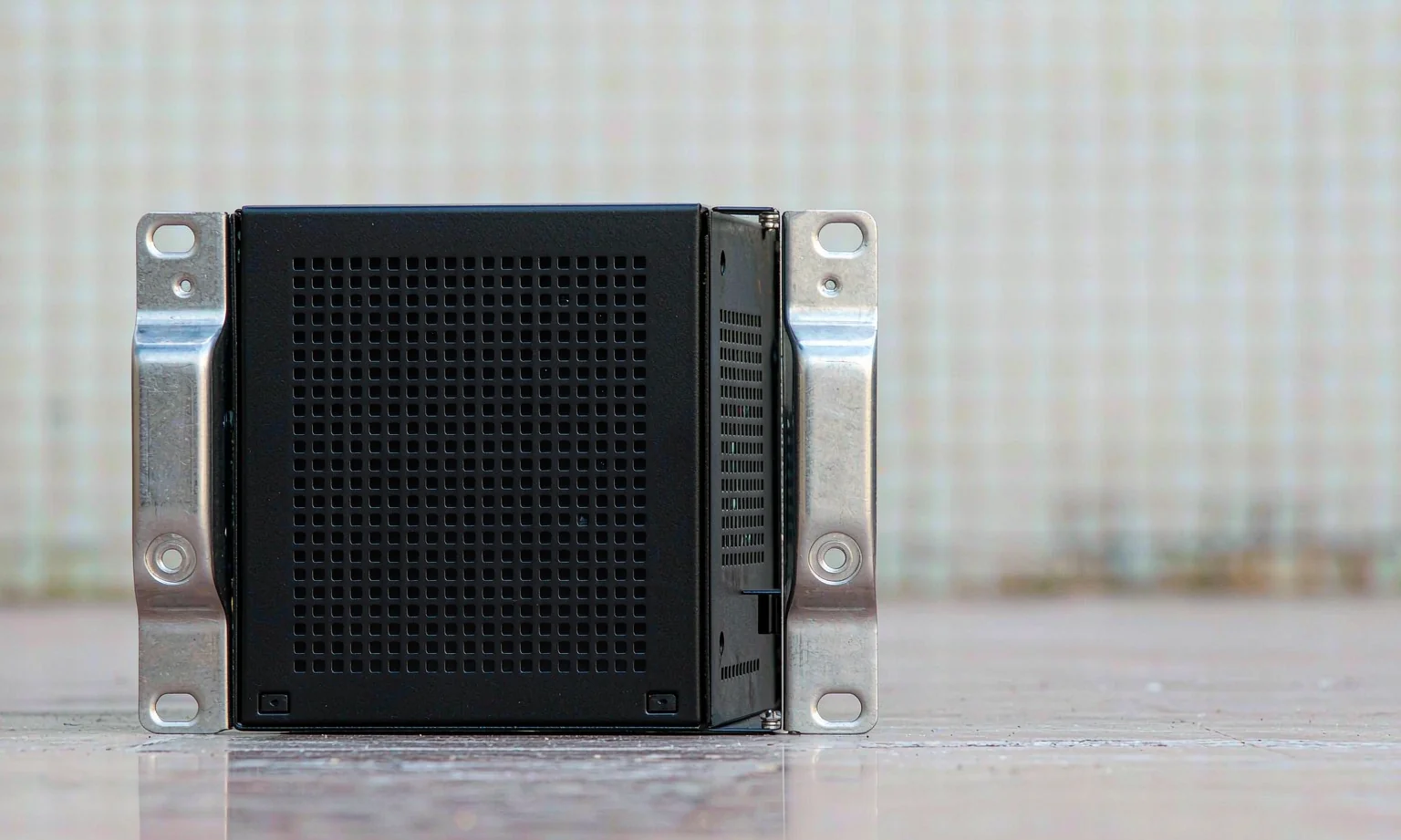

Server & Network Chassis
Standard rack servers, switches, routers, firewalls and patch devices.
| Height | 1U (44.45 mm) to 4U |
| Material | SPCC/SECC 1.0-1.2 mm |
| Panels | Perforated front, vented top and rear |
| Options | Rack ears, slide rails, EMI fingers |
Deep Cases & Towers
Audio amplifiers, test equipment, storage and workstation towers.
| Depth | 300 - 900 mm |
| Material | SPCC 1.2-1.5 mm, aluminum fronts |
| Structure | Chassis + covers + handles + feet |
| Options | Custom cutouts, silk screen, RGB-free vents |
Rack Frames & Enclosures
Complete open frames, wall racks and enclosed server cabinets.
| Height | Up to 42U (2000 mm) |
| Material | SPCC/SECC 1.5-2.0 mm |
| Accessories | Doors, side panels, shelves, PDU brackets, cable bars |
| Finish | Black or RAL textured powder coating |
Materials, Finishes & Customization
EMI and airflow requirements should be shared early - they influence material, finish and seam design in DFM review.
Standard Materials
| SPCC 1.0-1.5 mm | Standard chassis body material |
| SECC / SGCC | Corrosion-resistant rack structures |
| Aluminum 5052 / 6061 | Lightweight panels and front bezels |
| Copper / beryllium options | EMI gaskets and contact fingers (supplier parts) |
Surface Finishes
| Textured black | Standard server-grade finish |
| RAL colors | Custom color for branded products |
| Silk-screen | Front legends, logos and indicators |
| Brushed aluminum | Premium front panels and bezels |
Customization
| Perforation | Custom hole size, pitch and open area |
| EMI shielding | Finger stock, conductive gaskets, coated seams |
| Cooling | Fan brackets, filter kits, airflow baffles |
| Mounting | Rail kits, cable management, grounding studs |
| Front panels | Custom bezels, handles, key locks |
The Production Route for This Product
DFM & Engineering Review
Bend radii, tolerances, weld access and assembly sequence checked against your drawing before quoting.
Laser Cutting
Fiber laser profiles the flat patterns with burr-free edges and repeatable accuracy.
CNC Bending & Forming
Synchronized press brakes form the body, flanges and structural features.
Welding (optional)
TIG, MIG or spot welding for frames and sealed assemblies, then grinding and finishing.
Surface Finishing
Powder coating, anodizing, plating or brushing applied to your specification.
Assembly & Inspection
Hardware, hinges, gaskets and labels installed; dimensions, appearance and fit checked.
Pack & Ship
Protective film, corner protection, palletizing and container planning for your market.
Common Questions About This Product
The standard front mounting width is 482.6 mm (19 inches) between rack rails. Chassis depth and height are customized to your equipment.
Yes - chassis height follows your drawing. Half-U, 1.5U and other non-standard heights are manufactured regularly.
Yes. Hole size, pitch and pattern are cut per your airflow specification, and we can advise on typical open-area ratios during DFM review.
We can supply the full scope: rack frame, front/rear doors, side panels, mounting rails, shelves and PDU brackets as a ready-to-assemble enclosure.
