Electrical Cabinets, Enclosures & Control Cabinets Manufacturer
Custom electrical enclosures and control cabinets: wall-mount boxes, floor-standing cabinets, EV charger, energy storage and HVAC housings with IP gaskets, gland plates and lock systems. OEM sheet metal factory in China.
Typical Configuration & Parameters
We fabricate the metal shell of your electrical product: wall-mount junction and control boxes, floor-standing industrial cabinets, EV charger enclosures and energy-storage cabinet bodies - complete with doors, gland plates, mounting panels and sealing.
Because we are the factory, IP ratings are engineered rather than advertised: gasket channels, hinge geometry, lock placement and cable entry are reviewed for assembly before we quote.
Details, Finishes & Applications
Representative photos of our sheet metal work - click any image to enlarge.
Specifications at a Glance
| Parameter | Typical Specification |
|---|---|
| Cabinet types | Wall-mount boxes, floor cabinets, charger & battery cabinets |
| Materials | SPCC 1.2-2.0 mm, SECC, SUS304; aluminum options |
| Sizes | Wall-mount up to 800 x 600 x 300 mm; floor up to 2200 x 1000 x 800 mm |
| Sealing | Foam-in-place or EPDM gaskets, IP54-IP65 |
| Accessories | Gland plates, ventilation, heaters, locks, hinges, plinths |
| Finish | Powder coating RAL7035/RAL7032 or custom |
| Standards guidance | Manufactured to your requested protection and test criteria |
| Lead time | Prototype 7-12 days; serial 20-35 days |
Parameters above are representative. Your drawing defines the final specification.
Popular Configurations We Manufacture
All sizes and options below are fully customizable to your drawing. Use a configuration as a starting point for your quotation.
Wall-Mount Junction & Control Boxes
Terminals, controllers, drives and sensors in factory or field use.
| Size range | 120 x 160 x 90 to 800 x 600 x 300 mm |
| Material | SPCC/SECC 1.2-1.5 mm |
| Options | Window door, gland plates, DIN rail backplate |
| Protection | IP54 standard, IP65 with gasket |

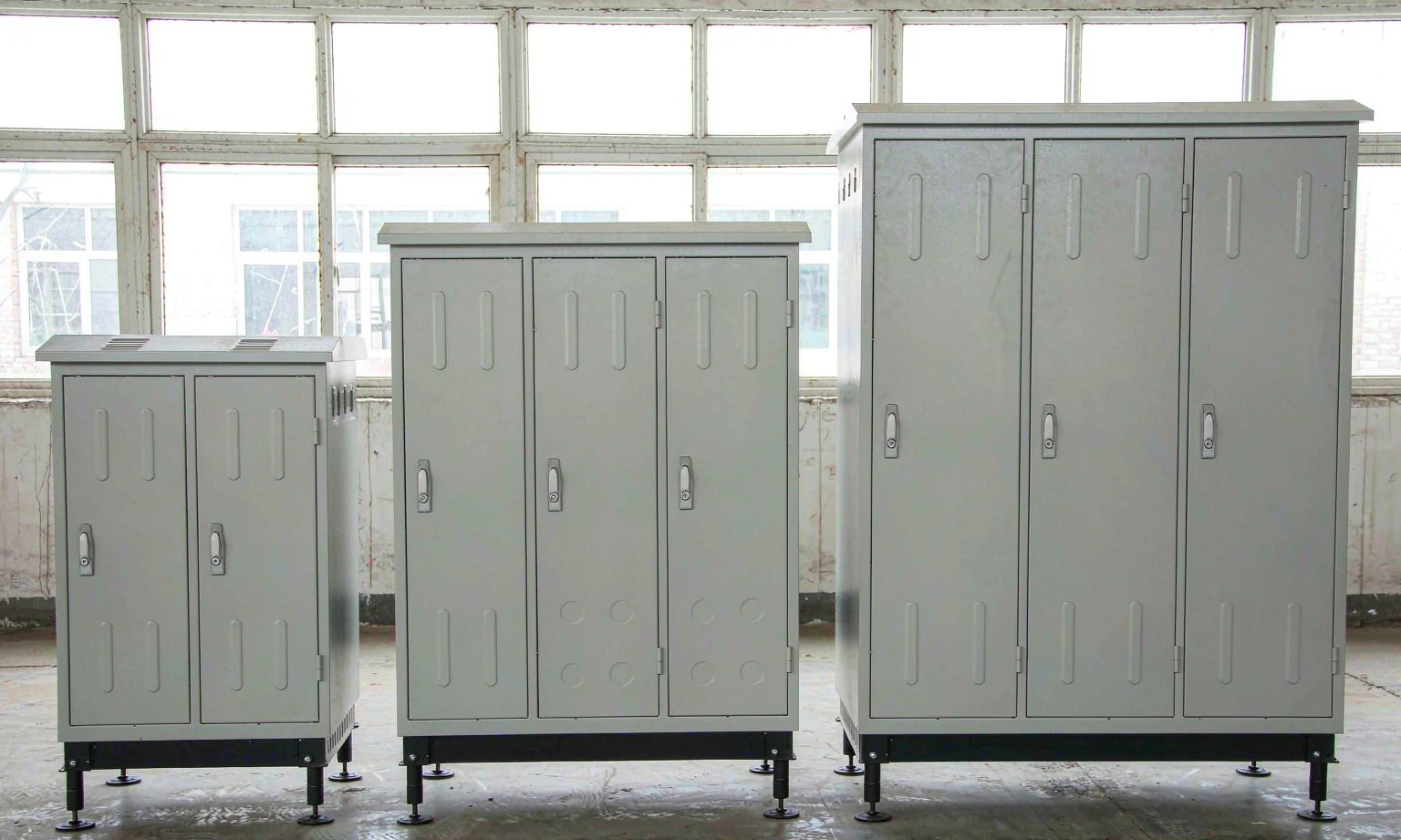

Floor-Standing Control Cabinets
Machine control, drives, PLC systems and power distribution.
| Size range | 1800-2200 x 600-1000 x 400-800 mm |
| Material | SPCC 1.5-2.0 mm |
| Structure | Frame + door + side panels + base plinth |
| Options | Roof, gland plates, ventilation, locks |
EV Charger & Energy Storage Cabinets
AC/DC charger pedestals, battery cabinet shells, PCS and inverter housings.
| Size range | Pedestal to 2200 mm floor cabinet |
| Material | SPCC/SECC 1.5-2.0 mm, aluminum options |
| Requirements | Weather sealing, ventilation, structural rigidity |
| Finish | Outdoor-grade powder coating, anti-UV |
Materials, Finishes & Customization
IP class is achieved by design - our engineers confirm gasket and assembly details during DFM review before production.
Standard Materials
| SPCC 1.2-2.0 mm | Main body material for cabinets |
| SECC / SGCC | Corrosion-resistant for outdoor shells |
| SUS304 | Where hygiene or coastal corrosion matters |
| Aluminum 5052 | Lightweight mobile or wall cabinets |
Surface Finishes
| Powder coating | RAL7032/7035 standard; any RAL to order |
| Textured coating | Scratch-resistant surface for field devices |
| Outdoor grade | Anti-UV polyester powder for sun exposure |
| Anti-condensation | Internal coating and vent options |
Customization
| Doors & windows | Solid, window, perforated or double doors |
| Cable entries | Gland plates, knock-outs, brush strips |
| Ventilation | Filter fans, louvers, cutout patterns |
| Mounting | DIN rail, backplates, wall brackets, plinths |
| Labels | Silk-screen, engraved nameplates, warning decals |
The Production Route for This Product
DFM & Engineering Review
Bend radii, tolerances, weld access and assembly sequence checked against your drawing before quoting.
Laser Cutting
Fiber laser profiles the flat patterns with burr-free edges and repeatable accuracy.
CNC Bending & Forming
Synchronized press brakes form the body, flanges and structural features.
Welding (optional)
TIG, MIG or spot welding for frames and sealed assemblies, then grinding and finishing.
Surface Finishing
Powder coating, anodizing, plating or brushing applied to your specification.
Assembly & Inspection
Hardware, hinges, gaskets and labels installed; dimensions, appearance and fit checked.
Pack & Ship
Protective film, corner protection, palletizing and container planning for your market.
Common Questions About This Product
We build to the protection level your drawing and test requirements specify, typically IP54 to IP65 for wall boxes and outdoor cabinets, by design of gaskets, gland plates and assembly.
Yes - this is one of our core applications. We fabricate charger pedestals and battery cabinet shells with weather sealing, ventilation and structural rigidity for outdoor installation.
Yes, everything is laser cut and fabricated in-house, so door panels, backplates, gland plates, bases and mounting structures can ship together as a complete set.
Powder coating is available in any RAL or custom color. Send a color reference or code with your enquiry and we will confirm the closest option with samples.
