Stainless Steel Fabrication & Welding Services
Stainless steel fabrication in SUS304/316L: laser-cut brackets, panels, enclosures and TIG-welded assemblies with #4 brushed or sanitary finishes for food, medical, marine and outdoor use. China OEM factory.
Typical Configuration & Parameters
Stainless steel demands discipline - from material grade selection to weld heat control and finish. Our workshop fabricates SUS304 and SUS316L brackets, panels, housings and welded structures for food equipment, medical devices, marine hardware and outdoor telecom.
We control the whole chain: laser cutting, forming, TIG welding by experienced welders, then grinding, brushing or passivation so the finished part is clean, corrosion-resistant and consistent in repeat orders.
Details, Finishes & Applications
Representative photos of our sheet metal work - click any image to enlarge.
Specifications at a Glance
| Parameter | Typical Specification |
|---|---|
| Grades | SUS304, SUS316L (and 201 for cost-sensitive use) |
| Thickness | 0.5 - 6.0 mm typical |
| Processes | Laser cutting, bending, TIG/MIG welding, grinding, passivation |
| Welding | Certified welders; cosmetic and structural seams |
| Finishes | #3/#4 brush, mirror, bead blast, electropolish options |
| Applications | Brackets, panels, enclosures, guards, tanks, frames |
| Tolerance | +/-0.1 mm cutting; +/-0.2 mm formed assemblies |
| Lead time | Prototype 5-10 days; serial 15-30 days |
Parameters above are representative. Your drawing defines the final specification.
Popular Configurations We Manufacture
All sizes and options below are fully customizable to your drawing. Use a configuration as a starting point for your quotation.
Brackets, Panels & Plates
Structural and mounting parts for machinery, marine and outdoor equipment.
| Material | SUS304/316L, 1.0-4.0 mm |
| Process | Laser cut, bend, deburr, brush edges |
| Options | Drilled/tapped holes, edge folding |

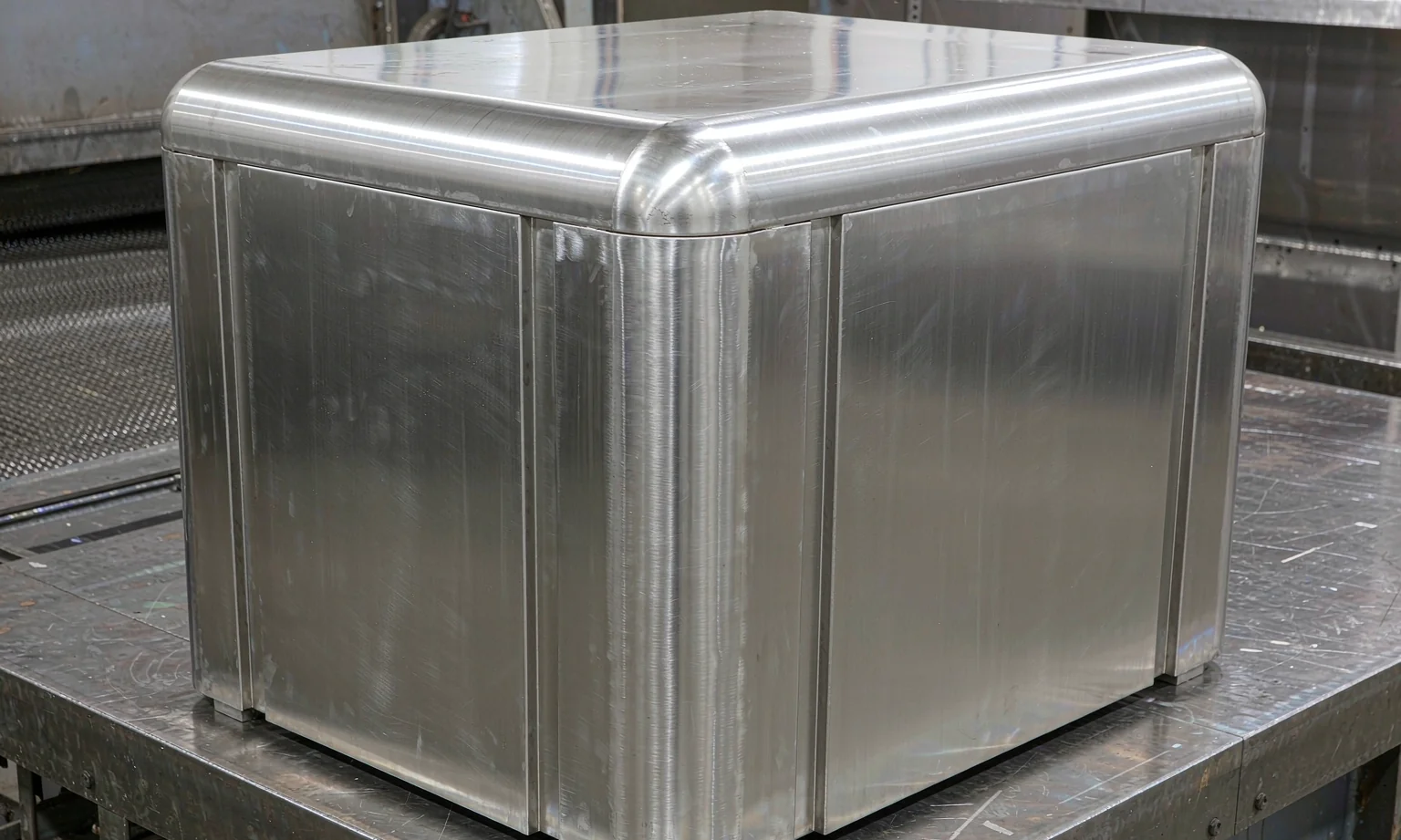

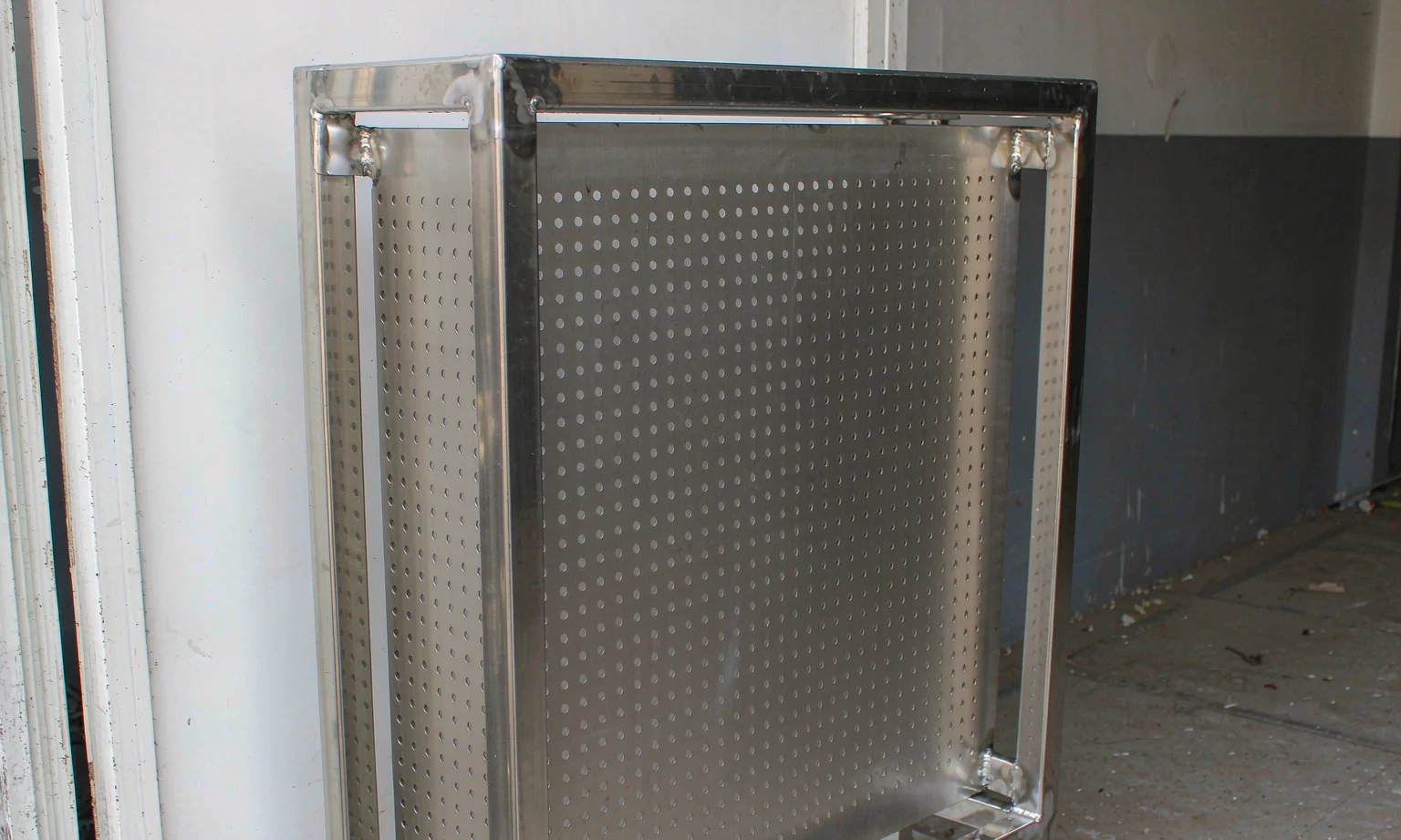

Frames, Guards & Enclosures
Machine guards, frames, housings and welded sub-assemblies.
| Material | SUS304/316L tube and sheet |
| Welding | TIG with fixture control, grind smooth |
| Size | Up to 2000 mm assemblies |
| Finish | #4 brush or bead blast |

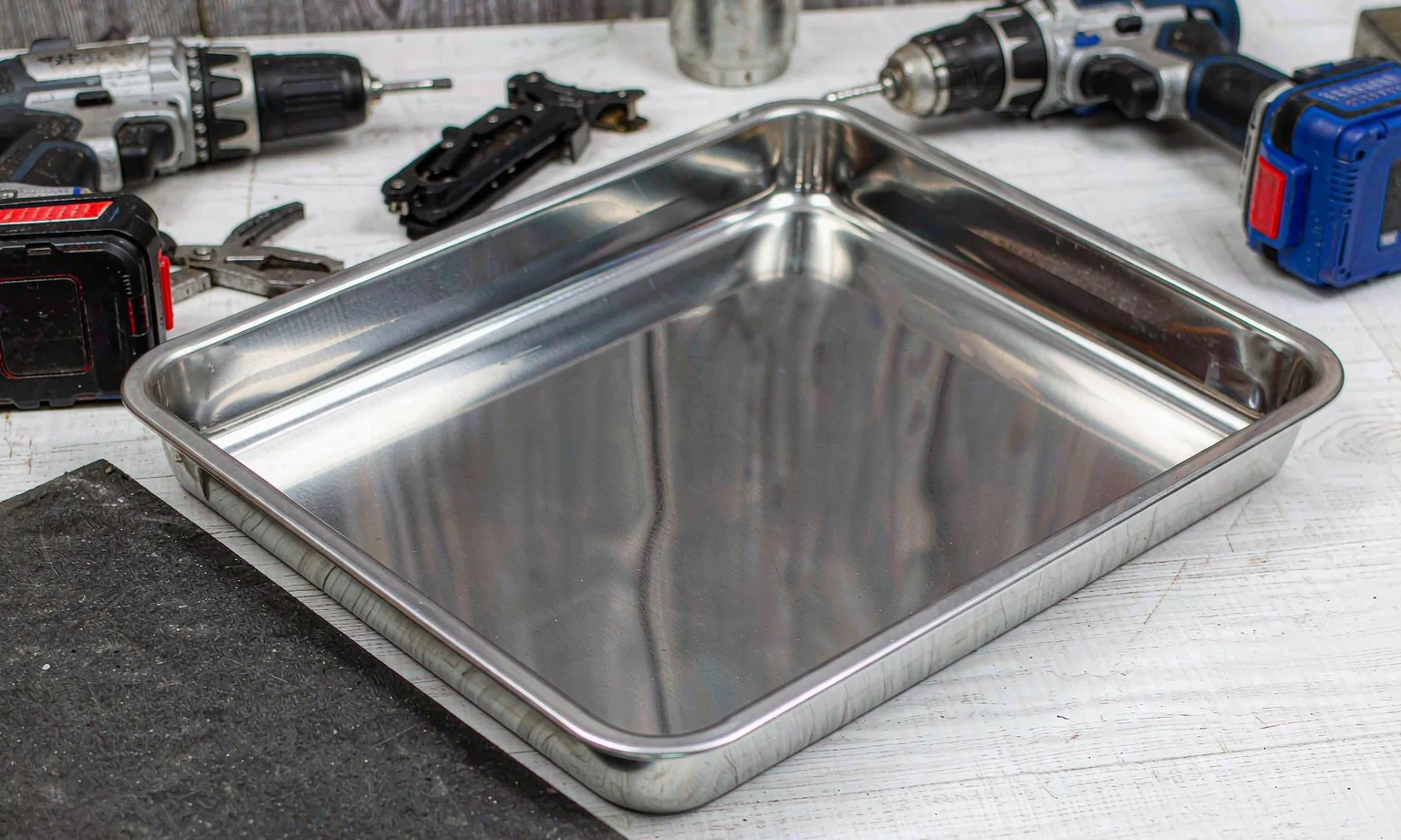

Food & Hygienic Fabrication
Conveyor parts, hoppers, covers and cleanable enclosures.
| Material | SUS304/316L, food-contact surface finish |
| Design | No crevices, drainable, radius corners |
| Finish | Mirror or fine brush, passivated |
| Docs | Material certs on request |
Materials, Finishes & Customization
For sanitary or outdoor-critical parts we recommend passivation after welding and offer material certificates on request.
Standard Materials
| SUS304 | General stainless - food, medical, architecture |
| SUS316L | Marine and chemical corrosion resistance |
| SUS201 | Cost-effective magnetic option |
| 430 / 410 | Heat and wear resistant ferritic/martensitic |
Surface Finishes
| #4 brushed | Standard sanitary/industrial finish |
| Mirror polish | Decorative and high-hygiene surfaces |
| Bead blast | Uniform matte appearance |
| Passivation | Restores corrosion resistance after welding |
| Electropolish | Bright, micro-smooth hygienic finish |
Customization
| Cutouts & holes | Precision laser profiles and piercings |
| Forming | Bends, folds, embossing, hemming |
| Welding | TIG/MIG; cosmetic, structural or hygienic |
| Hardware | Hinges, latches, feet, PEM fasteners |
| Marking | Laser engraving for traceability |
The Production Route for This Product
DFM & Engineering Review
Bend radii, tolerances, weld access and assembly sequence checked against your drawing before quoting.
Laser Cutting
Fiber laser profiles the flat patterns with burr-free edges and repeatable accuracy.
CNC Bending & Forming
Synchronized press brakes form the body, flanges and structural features.
Welding (optional)
TIG, MIG or spot welding for frames and sealed assemblies, then grinding and finishing.
Surface Finishing
Powder coating, anodizing, plating or brushing applied to your specification.
Assembly & Inspection
Hardware, hinges, gaskets and labels installed; dimensions, appearance and fit checked.
Pack & Ship
Protective film, corner protection, palletizing and container planning for your market.
Common Questions About This Product
We regularly fabricate SUS304 and SUS316L in sheet, coil and tube form. SUS201, 430 and other grades are available by project - confirm the grade on your drawing or with our engineers.
Yes - brushing is done after welding and grinding so the complete visible surface is uniform. Specify the brush direction and finish grade on your drawing.
Passivation can be added after welding to restore corrosion resistance. Mill certificates and, where needed, third-party material testing are available on request.
Our welders are experienced with structural and cosmetic seams, and we can inspect to your acceptance level (e.g., ISO 5817 class C/B) with records for critical parts.
