Energy Storage Cabinet Enclosures & Battery Cabinet Shells
We fabricate the empty metal enclosure for battery energy storage systems, C&I storage cabinets and rack-based battery modules: body, doors, plinth, ventilation and cable entry, engineered for outdoor or container installation. Electrical design, cells, BMS, inverter and system certification remain with you.
What We Build for Energy Storage Projects
An energy storage cabinet fails outdoors long before it fails electrically: water ingress at the gasket line, condensation on cold metal, a door that drops on its hinges after 500 openings, a plinth that rusts in a coastal yard. Those are sheet metal problems, and they are the ones we are set up to solve.
We supply the fabricated shell only. You keep the electrical scope: cells, modules, BMS, PCS, thermal management and the system-level certification of the finished unit. That boundary is written on every quotation so there is no ambiguity at inspection.

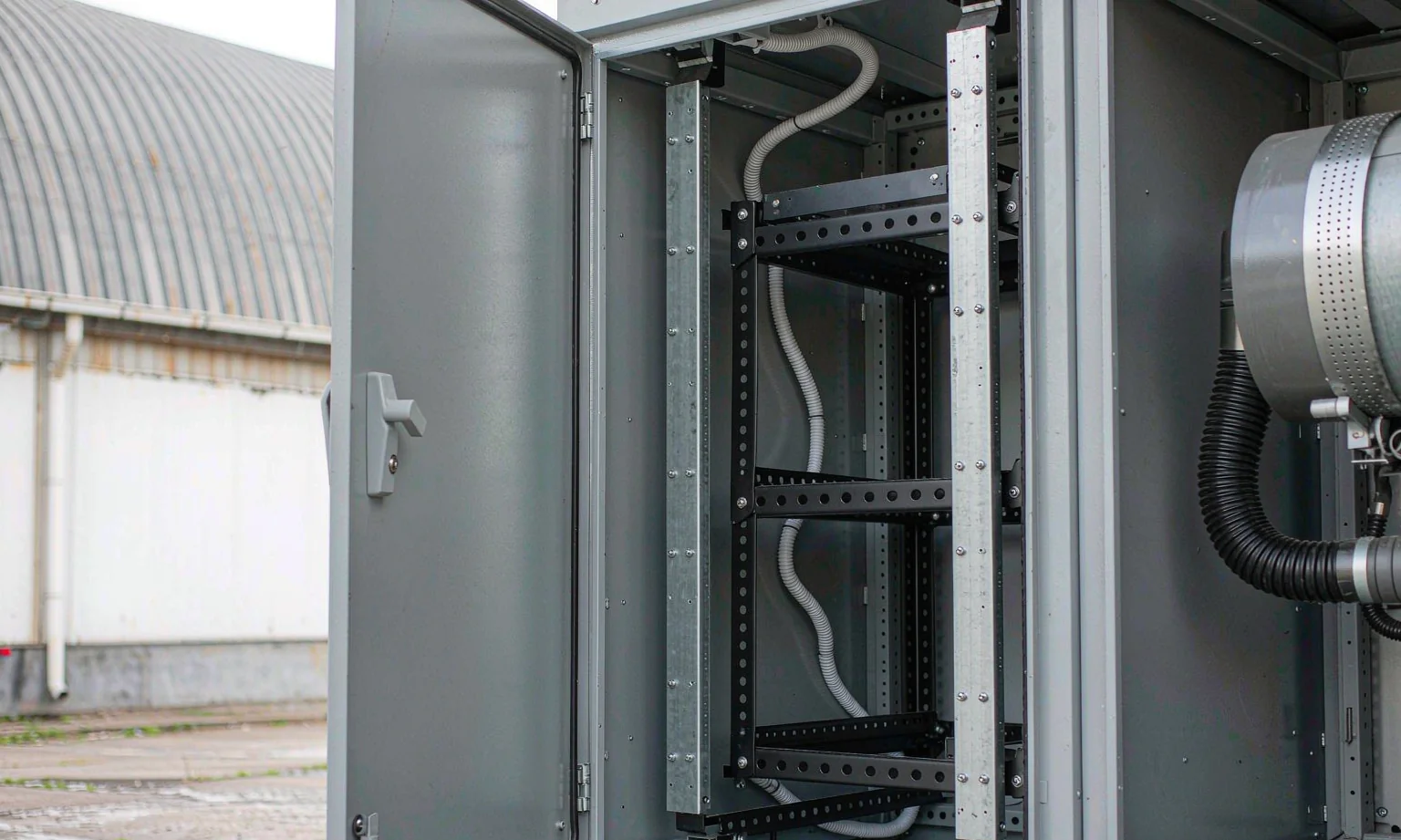

Closer Look at This Enclosure Type
Representative photographs of the construction, interfaces and installation context for this product family.
Specifications at a Glance
| Parameter | Typical Specification |
|---|---|
| Typical unit | Outdoor / indoor BESS cabinet shell, battery module housing, PCS cabinet body |
| Configuration | Single or double door, front access, front+rear access, modular multi-bay |
| Materials | SPCC 1.5-3.0 mm, SGCC/SECC galvanized, SUS304 / SUS316L for coastal sites |
| Size envelope | From 600 × 600 × 1000 mm modules up to 2400 × 1200 × 2200 mm cabinets |
| Sealing design | EPDM or polyurethane gasket channel, rain hood, filtered ventilation, IP54-IP65 by design |
| Thermal features | Louvres, fan openings, filter frames, air-conditioner cut-outs, duct interfaces |
| Base & mounting | Forklift base, crane lifting points, skid, plinth, anchor bolt holes, cable entry plate |
| Finish | Powder coating RAL7035 / RAL7032 or custom, optional hot-dip galvanized frame parts |
| Representative lead time | Prototype 10-15 days; serial production 25-40 days depending on scope |
The parameters above are representative of typical projects in this category. Your drawing defines the final specification, and every quotation states the scope it covers.
Popular Configurations We Manufacture
Every size and option is customised to your drawing. Use a configuration below as a starting point for your enquiry.
Free-Standing Outdoor BESS Cabinet
Double-door weatherproof cabinet for pad or skid mounting at commercial and industrial sites.
| Typical size | 1600-2400 H × 800-1200 W × 600-900 D mm |
| Protection by design | IP54 / IP55 |
| Feature highlights | Rain hood, louvre vents, gasket door, plinth |
Battery Module & Rack Shelf Housings
Sheet metal module boxes, shelves and separators that hold cells or modules inside the cabinet.
| Material | SPCC / SECC 1.2-2.0 mm |
| Finish | Powder coat or zinc plating |
| Tolerance | ±0.15 mm on mounting pitch |
Power Conversion Cabinet Bodies
Cabinet bodies for PCS, inverter and switchgear bays that sit alongside the battery units.
| Configuration | Single or double door, removable panels |
| Ventilation | Louvre, fan or duct interface |
| Access | Front, rear or both |
Materials, Finishes & Customisation
External structure
| Cold-rolled steel SPCC | 1.5-3.0 mm — indoor and sheltered sites, best cost / weight balance |
| Galvanized steel SGCC / SECC | 1.2-2.5 mm — improved corrosion resistance, cut-edge protection options |
| Stainless steel SUS304 / 316L | 1.0-3.0 mm — coastal, desert and high-humidity installations |
Corrosion strategy
| Powder coating | 80-100 µm polyester / hybrid coat, RAL7035 typical, salt-spray performance to your project spec |
| Zinc plating | For internal brackets, module shelves and fasteners |
| Edge & cut protection | Deburr plus coating on all laser-cut edges and cable openings |
Customisation
| Ventilation | Louvres with insect mesh, fan filters, air-conditioner apertures, closed-loop duct flanges |
| Cable management | Gland plate, bottom entry plate, brush seals, cable tray brackets |
| Branding | Powder-coated logo plates, silk-screen marking, rated label plates (no content supplied by us) |
How This Product Moves Through the Workshop
Your drawing or 3D model is reviewed for bend radii, gasket-channel geometry, door sag and cable access before anything is cut. Laser cutting produces the panel set, CNC bending forms the frame and skins, welding and grinding build the body, then powder coating, gasket fitting and hardware assembly follow. Each batch is checked for dimensional accuracy, door alignment and gasket compression before export packing with corner protection and desiccant.
- Drawing review with DFM feedback before production release
- Fiber laser cutting of the complete flat pattern in one set-up
- CNC press-brake forming, welding and grinding
- Coating applied before gaskets, hardware and glass are fitted
- First-article and sample inspection recorded for each batch
Common Questions About This Product
Yes — that is exactly the scope we work in. We fabricate the enclosure body, doors, panels, base and internal structural parts. Cells, BMS, PCS, wiring and the certification of the finished energy storage system are supplied and certified by you.
Protection is a design outcome of the gasket system, ventilation choice, cable-entry sealing and door hardware. We build to the IP level your project specifies — commonly IP54 to IP55 for outdoor cabinets, with higher levels achievable when the ventilation strategy allows a sealed envelope.
We form the features that the thermal design needs: louvre banks, filter frames, fan and air-conditioner cut-outs, duct flanges and condensation drain points. The thermal sizing and the choice of cooling equipment stay with your engineering team.
Yes. For coastal or humid installations we would normally propose SUS304 or SUS316L for the external structure, or galvanized steel with a heavier powder coat and sealed edge treatment on all cut faces. Please state the site conditions with your enquiry so the material is right the first time.
Yes — send photographs, a sample panel or a dimensional sketch. Our engineers reconstruct the geometry, propose the same or an improved material and return drawings for your confirmation before production.
